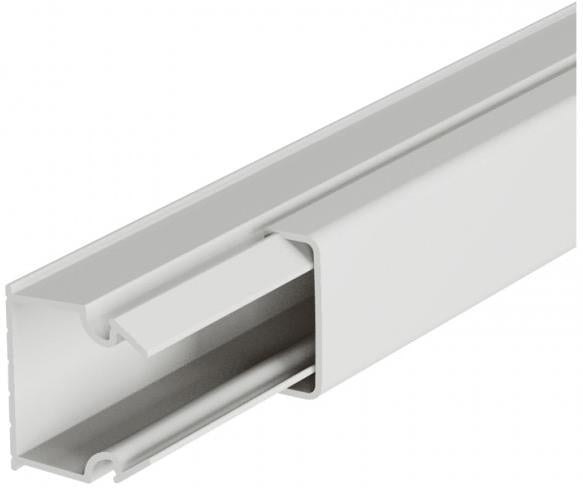

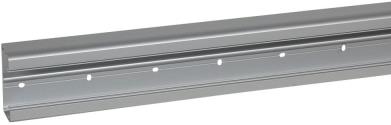

Cable trunking and accessories

Cable trunking is selected together with its covers, bends, end pieces and mounting accessories. Specify the route and system before comparing individual dimensions or preparing a list containing only straight sections.

What the trunking must accommodate

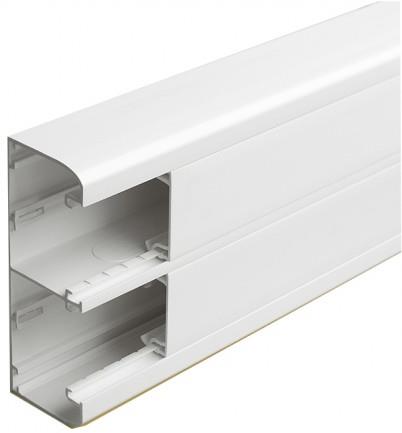

Record cables and required distribution by section. Check internal space and intended compartments for the specific system instead of relying on external dimensions alone. Names include different formats, such as slotted trunking and products with covers. Clarify which type the project needs. For floor mounting or another specific position, seek the exact reference's explicit purpose and fixing conditions.

Check finishing parts by series

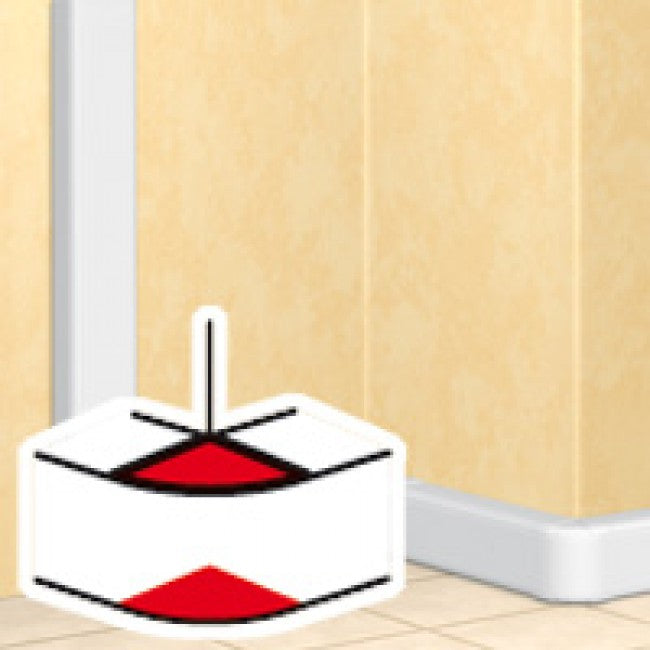

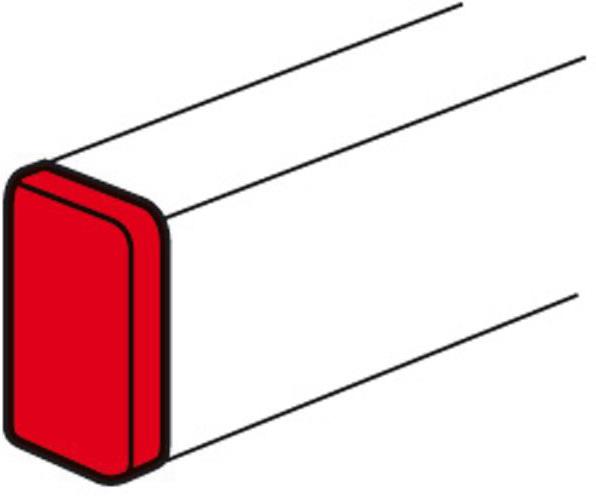

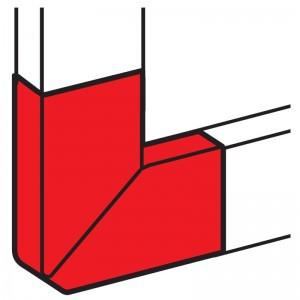

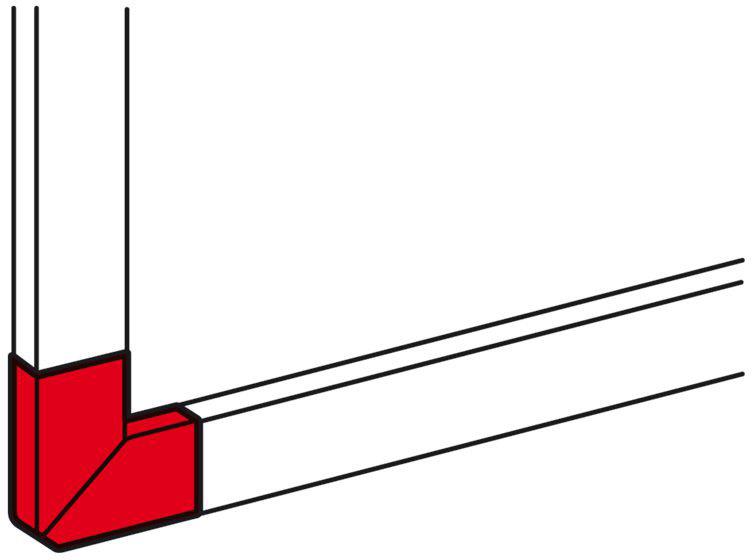

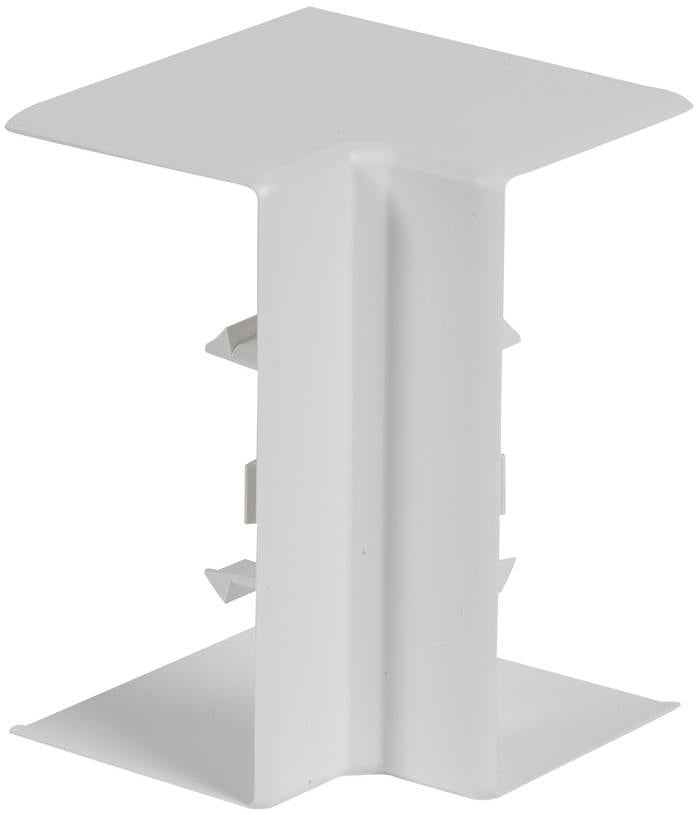

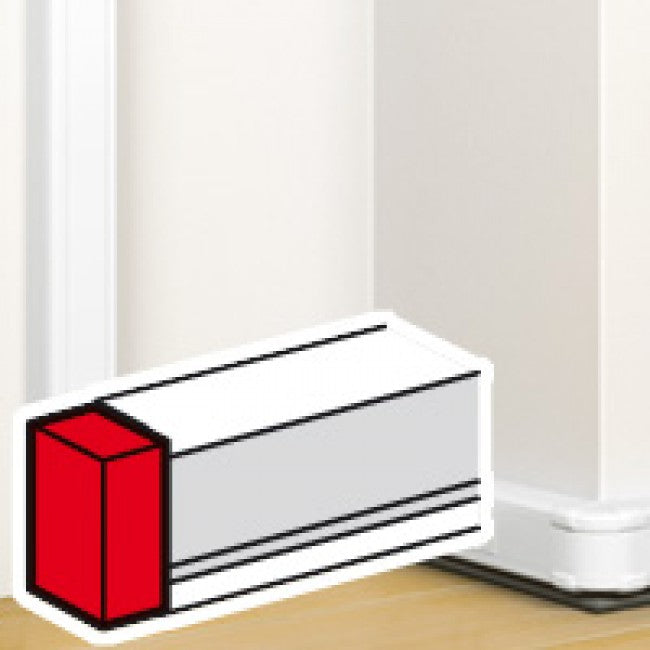

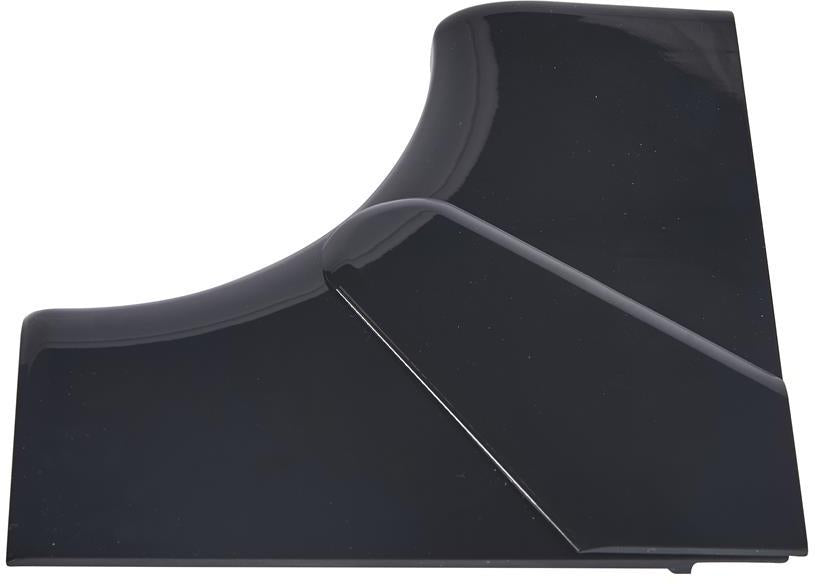

For each change of direction, note the required internal, external or flat angle according to the route. Add the end caps and check how they fit the profile and cover. Identical external dimensions are not sufficient grounds for combining parts from different series. In the LEGRAND and SCAME collections, you can browse the products shown by manufacturer, comparing their full system designations and codes.

When the route includes mechanisms

If the design includes sockets or other mechanisms for the trunking, check the frames, holders and mounting boxes required. Compare the trunking system with the modular format and specific accessories. Do not assume every frame from the same brand is suitable. Clarify the kit contents and which parts are selected separately. Keep these items beside the corresponding position in the diagram to avoid confusing them with bends and finishing parts of the route.

Selection in relation to the other routes

When the project requires a different version of a section, browse cable conduits or cable trays and fixings. For boxes outside the trunking system itself, continue to mounting and junction boxes. Finally, check the lengths, quantities and packs of all parts. The general cable routing and installation section is a starting point for coordinating the different groups, while the final list must remain tied to the exact systems and installation assemblies.
