Distribution board assembly

Equipping a distribution board connects the mechanical base, conductor connections and components for completing the enclosure. Organise these tasks separately to choose matching parts for the specific system.

Start with the equipment layout

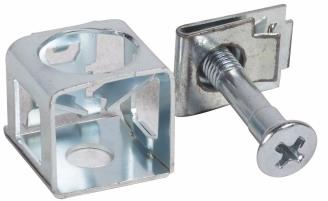

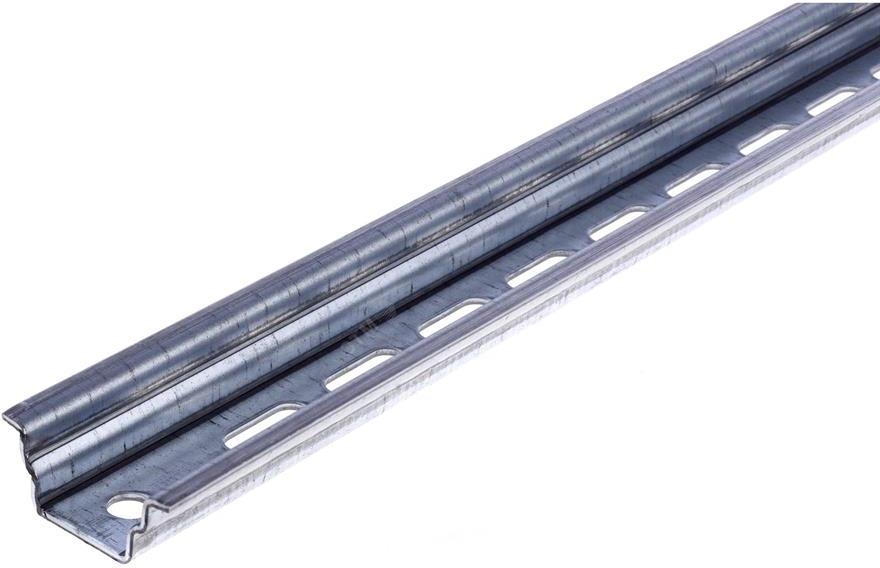

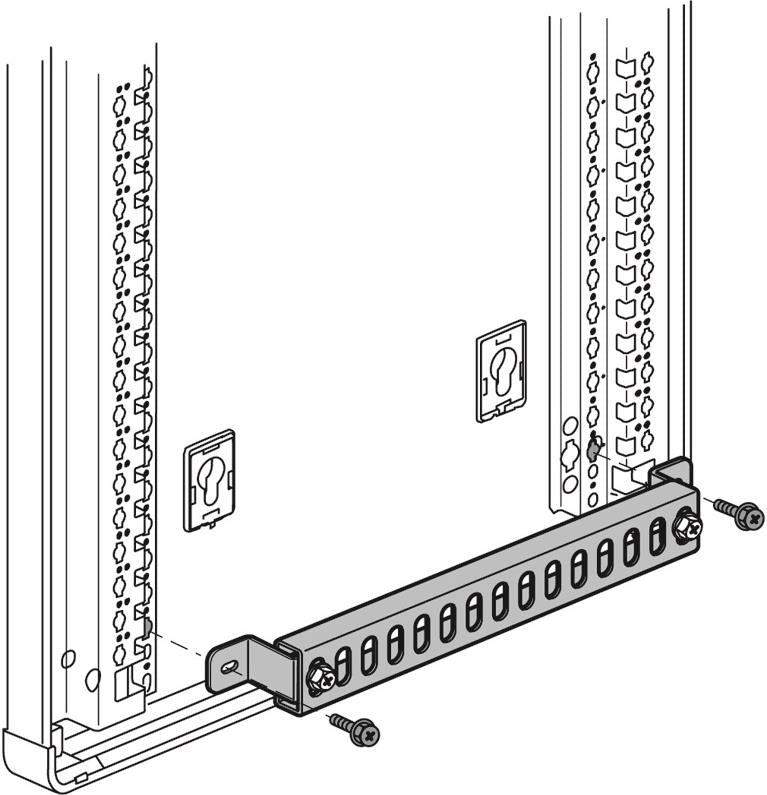

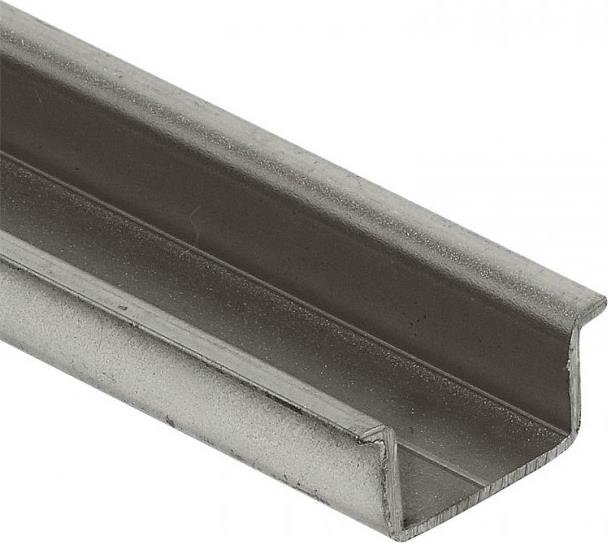

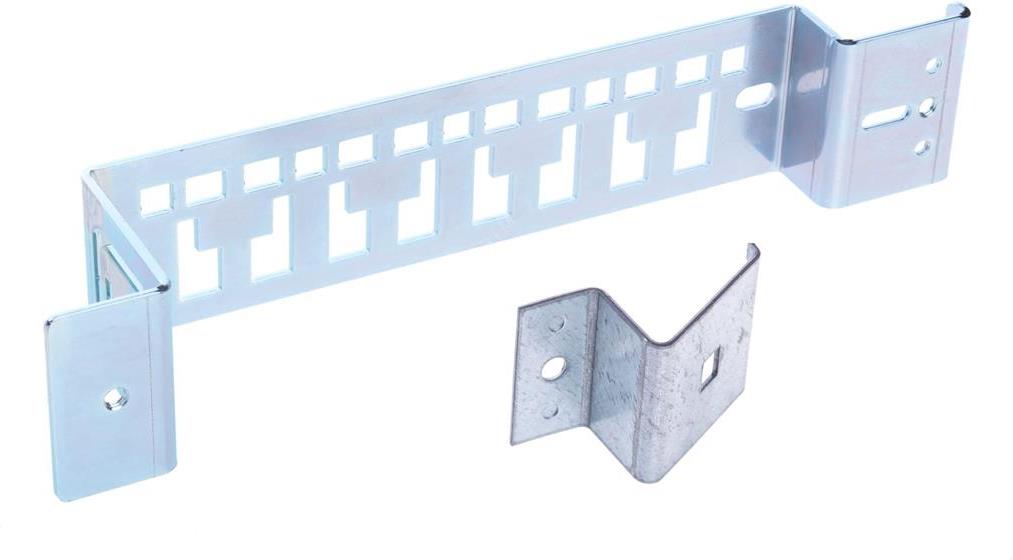

For support and organisation, use DIN rails, support insulators and mounting accessories. Clarify the profile and required space, as well as the brackets or adapters for the selected configuration. The rail and fastener are different items. The general DIN designation is insufficient to treat every combination as compatible.

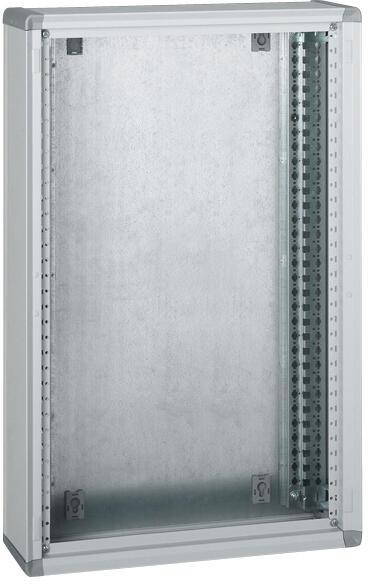

The range also includes faceplates, doors and other enclosure components. Select them by the system and exact distribution board reference. A dimensional label on one panel does not automatically determine compatibility with another enclosure. Check the space and access remaining for equipment instead of considering the decorative element in isolation from the internal configuration.

Allocate the electrical connection tasks

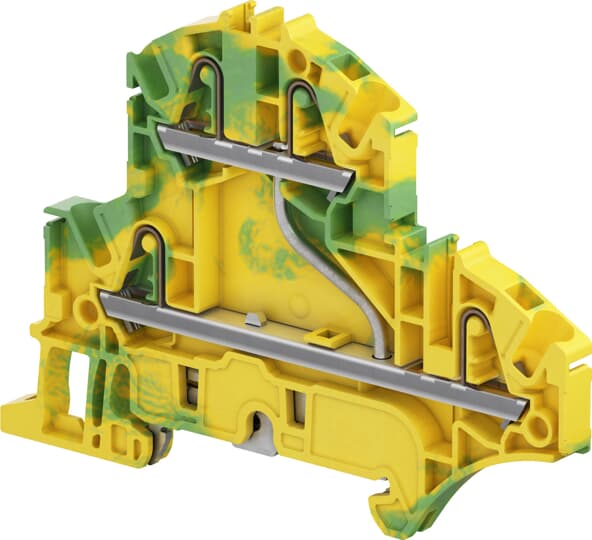

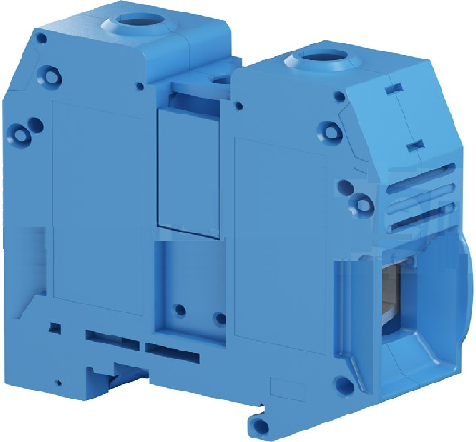

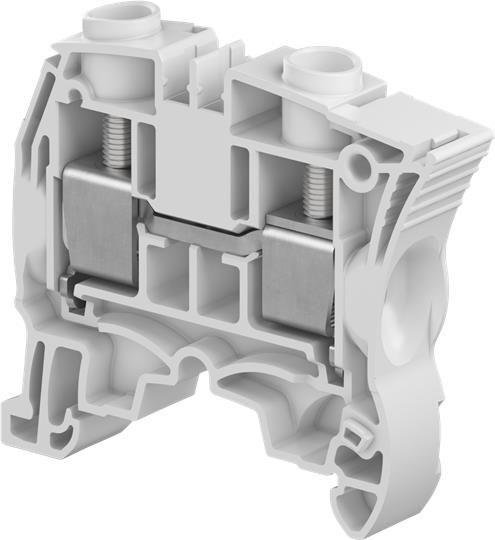

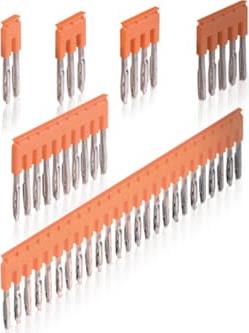

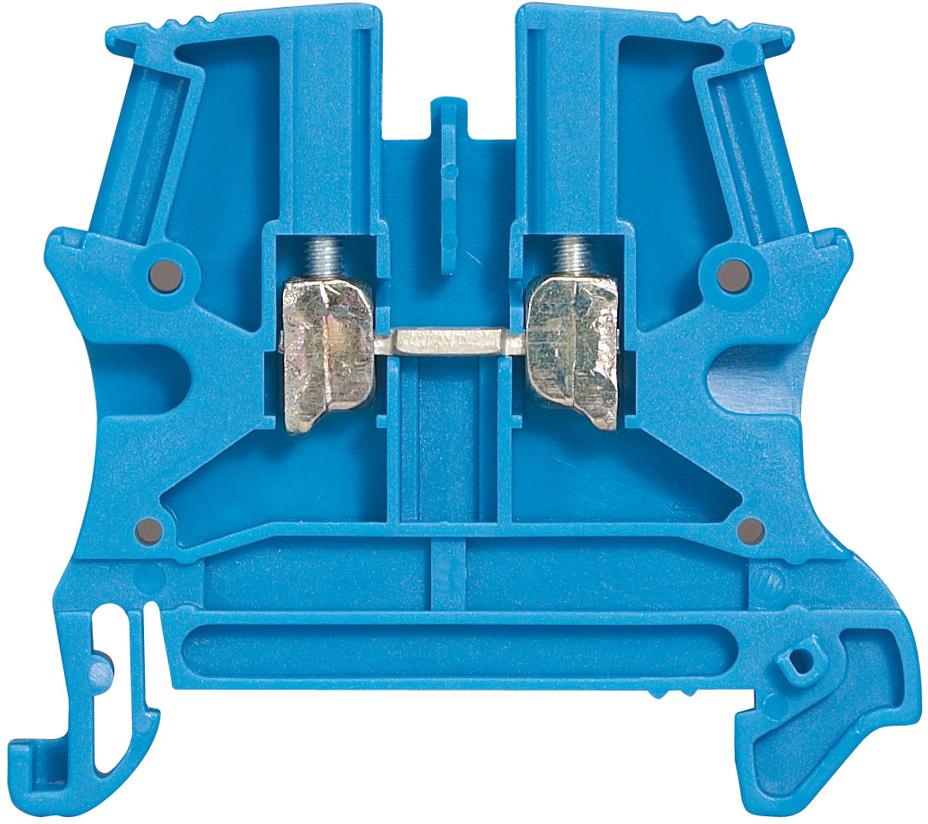

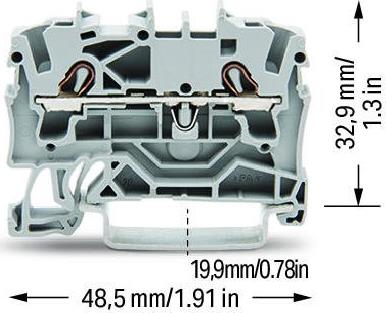

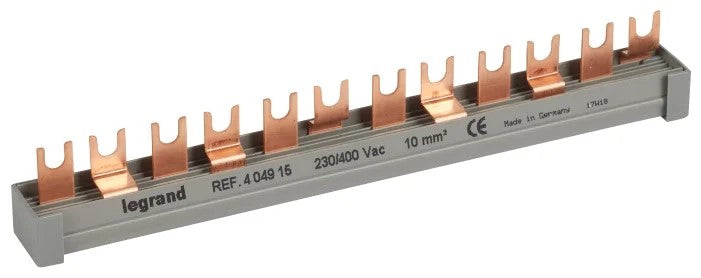

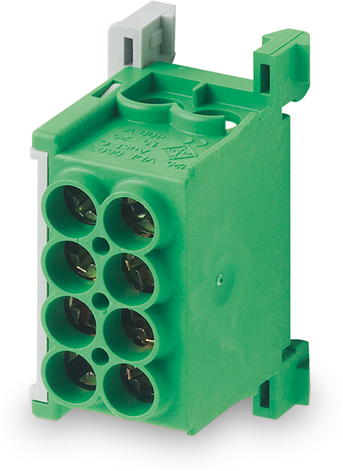

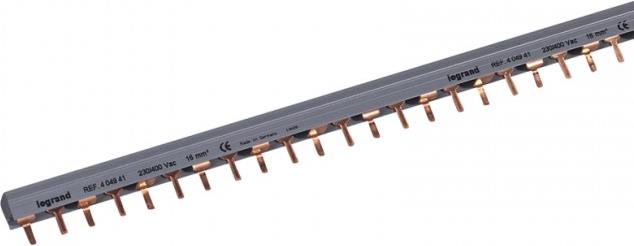

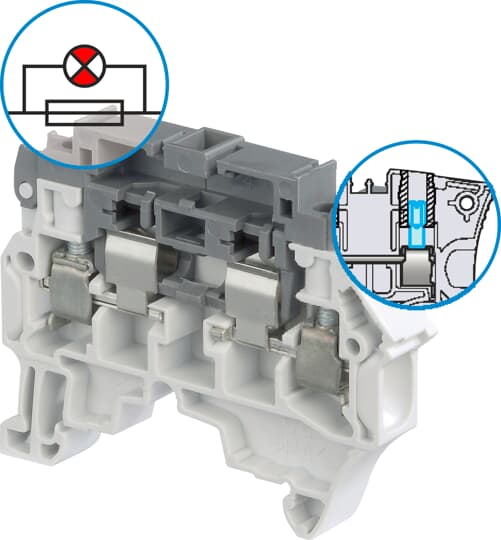

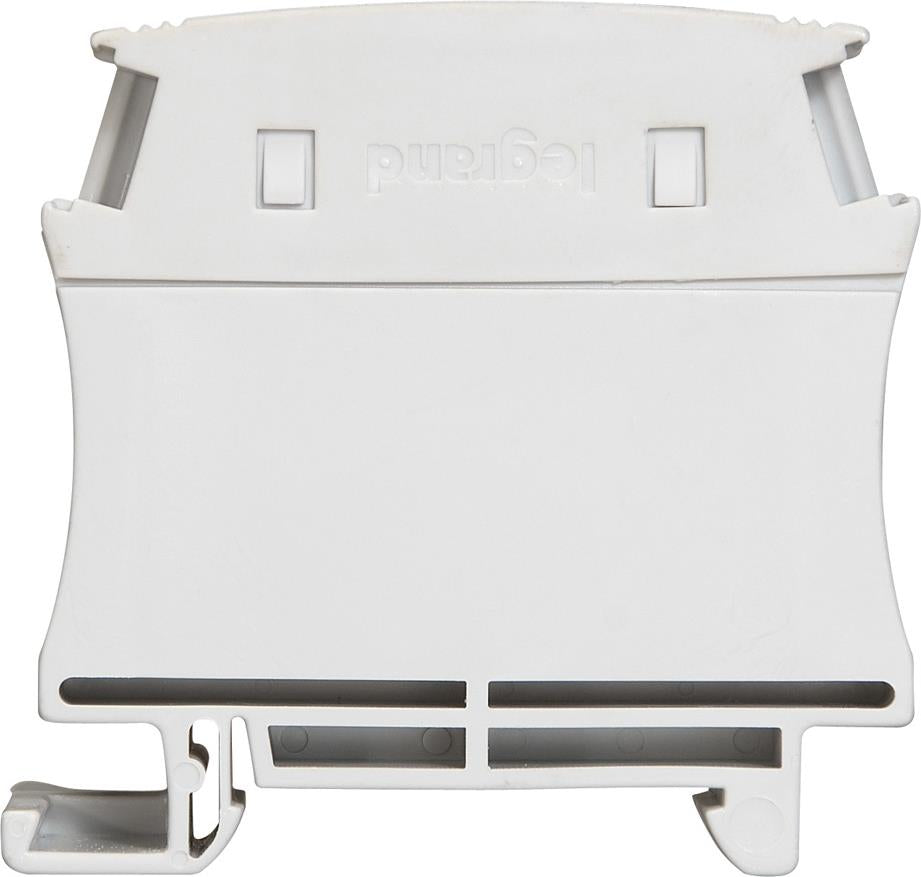

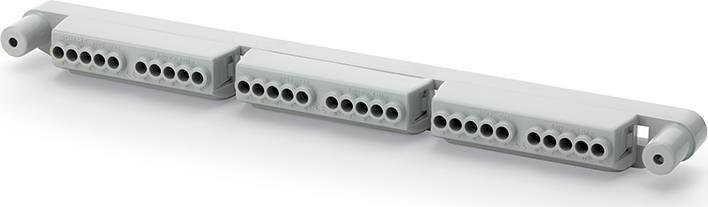

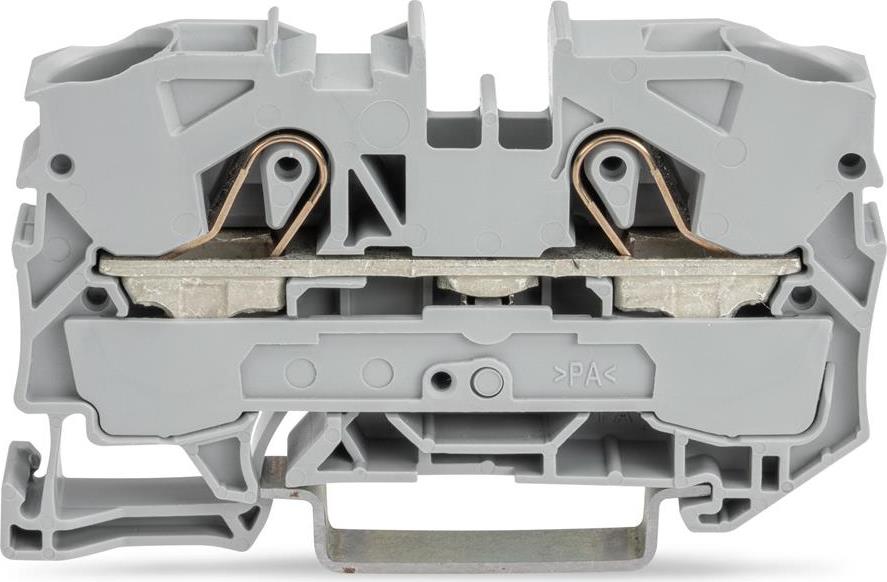

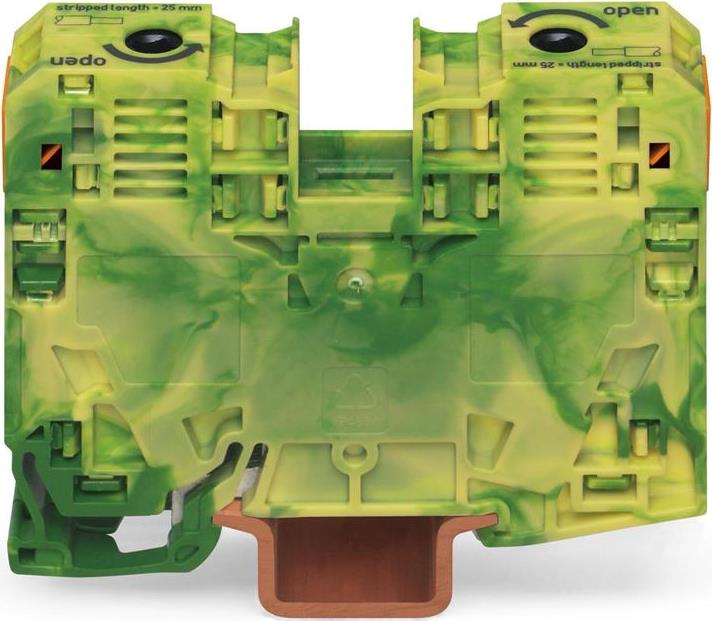

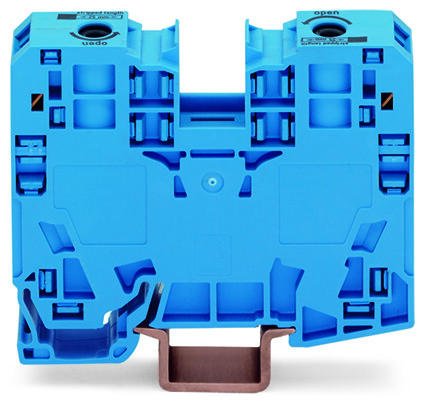

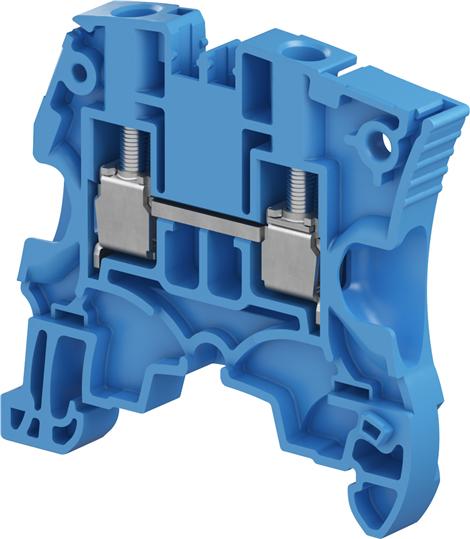

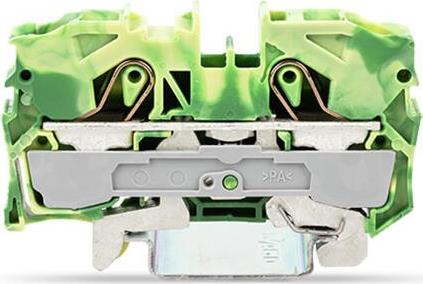

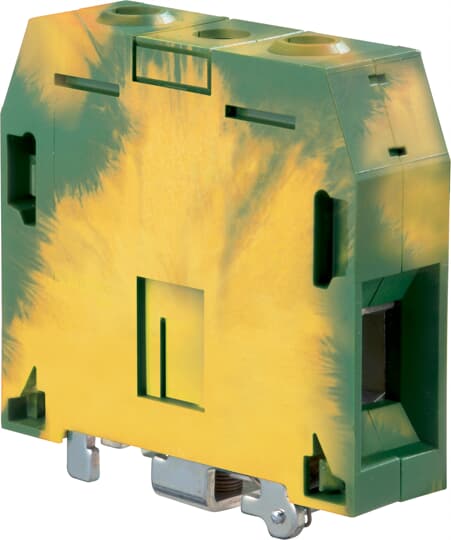

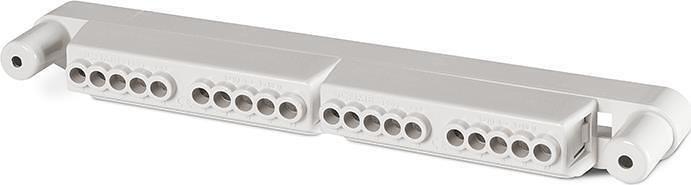

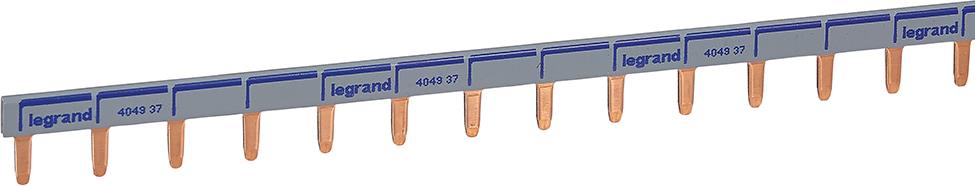

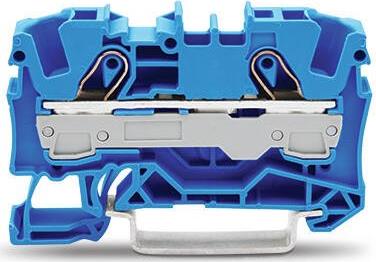

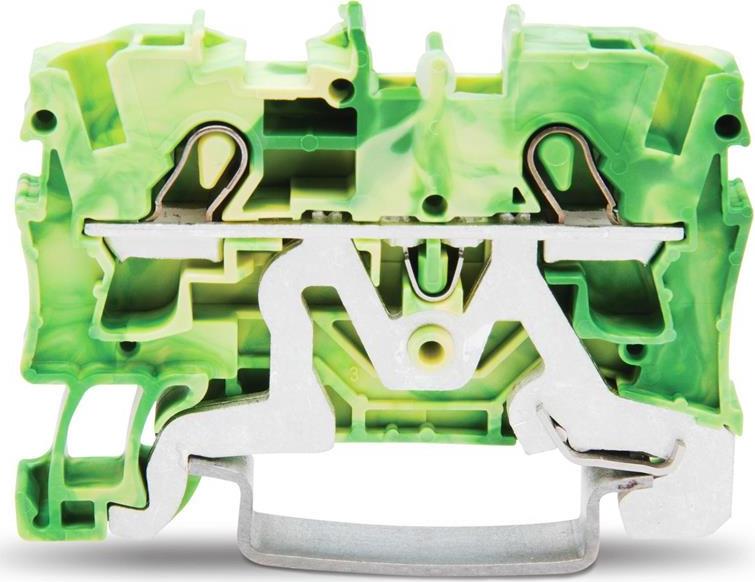

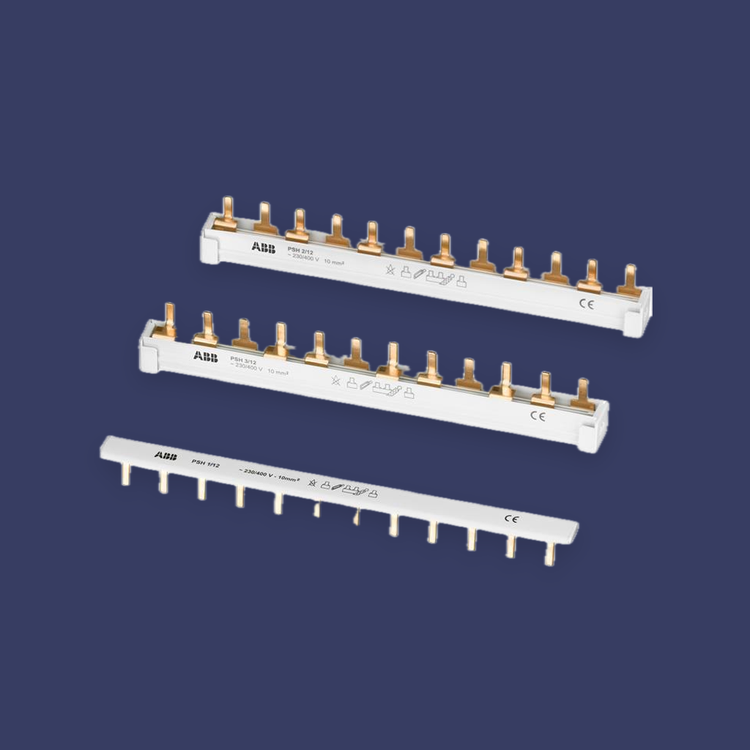

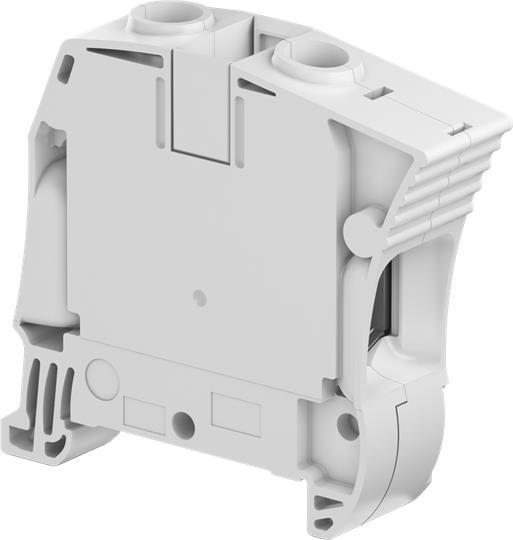

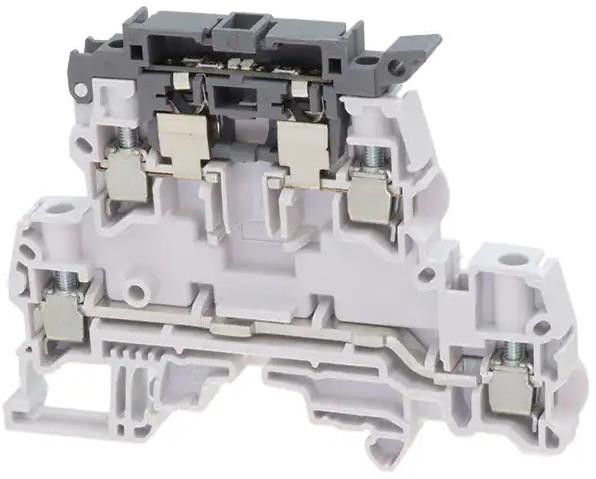

Comb busbars are compared by contact geometry and compatibility with the specific equipment. For distribution board terminals and terminal blocks , distinguish through connections, distribution blocks and accessories. Their presence in one general category does not mean they perform an identical function or are interchangeable.

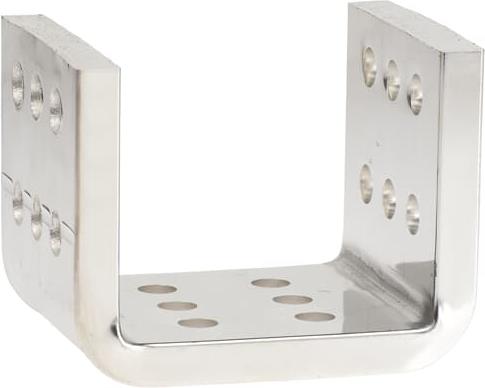

Moflex busbars are also presented. For the specific variant, compare the dimensions, structure and selected product data; do not infer permissible current from cross-section alone. Keep separate entries for busbars, supports, conductor connections and accessories. This allows the specific solution to be checked without transferring electrical values from one component to all the others.

Check package contents part by part

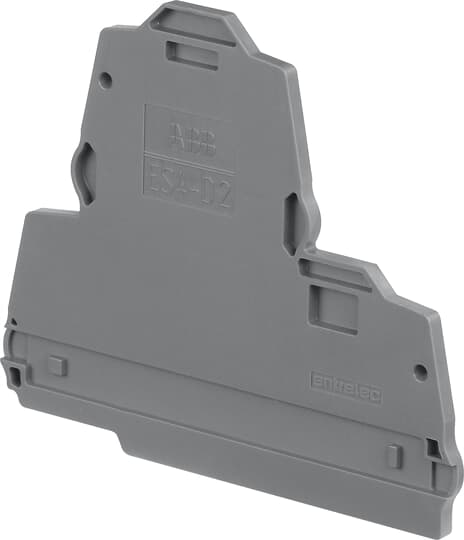

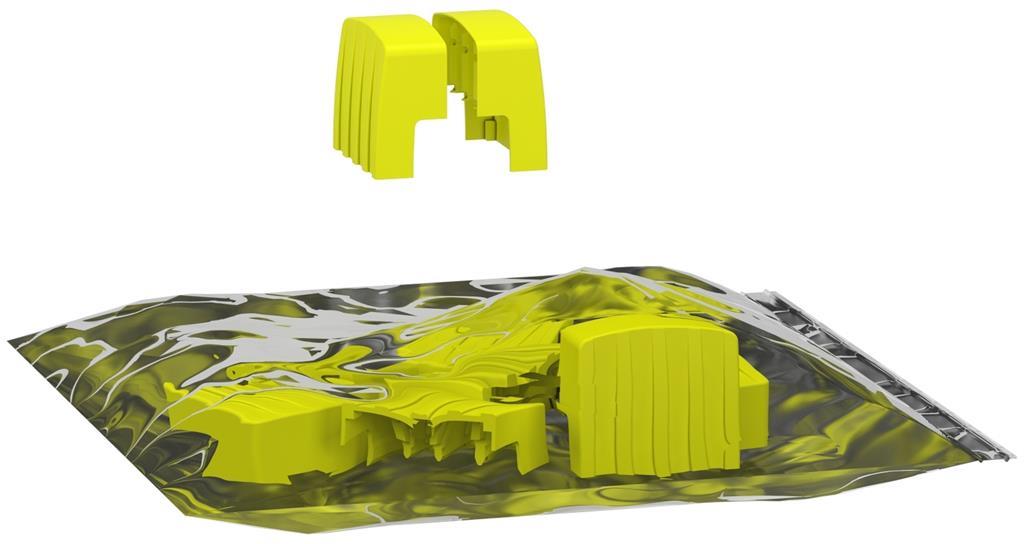

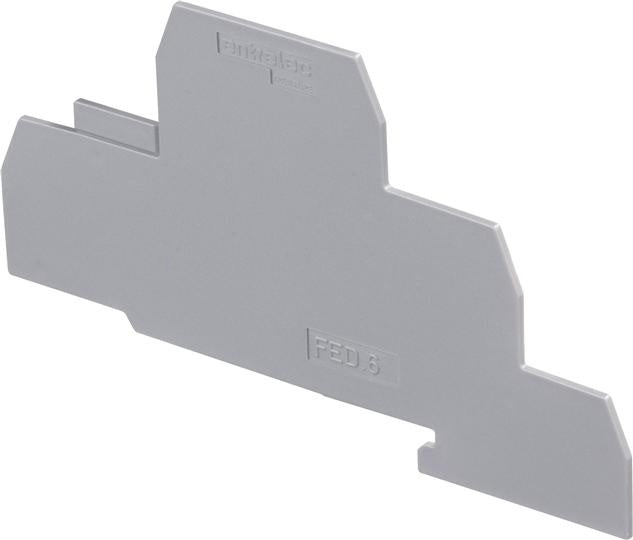

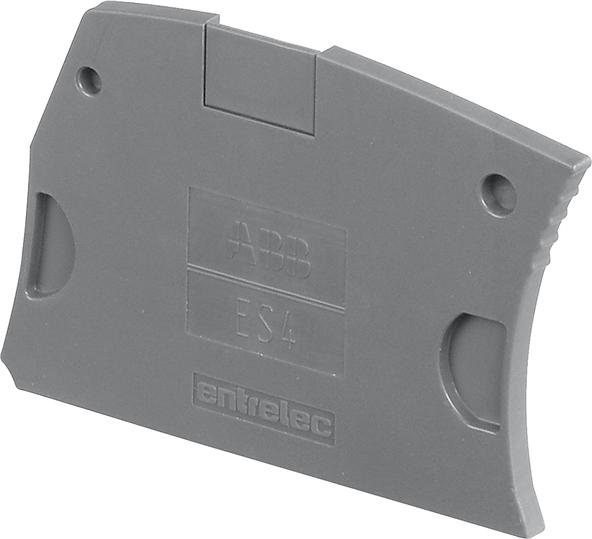

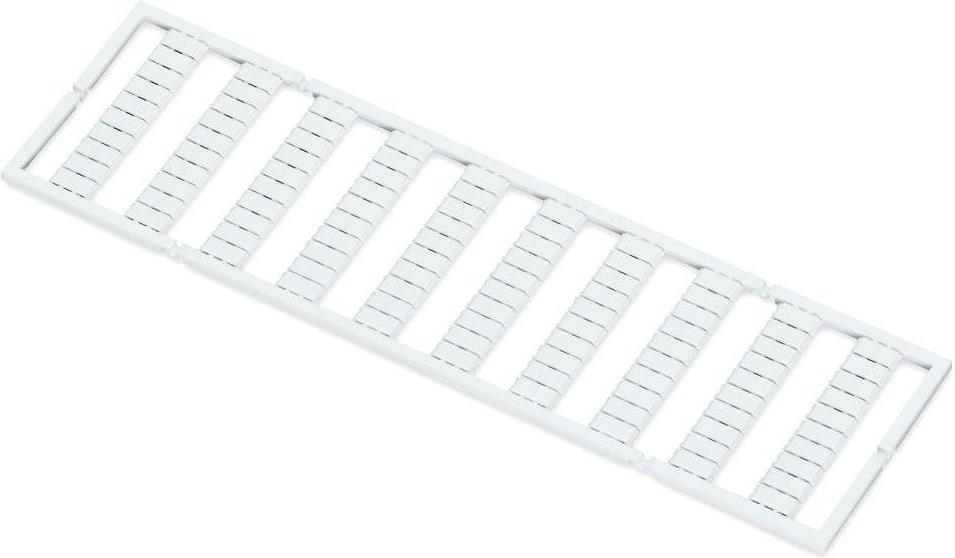

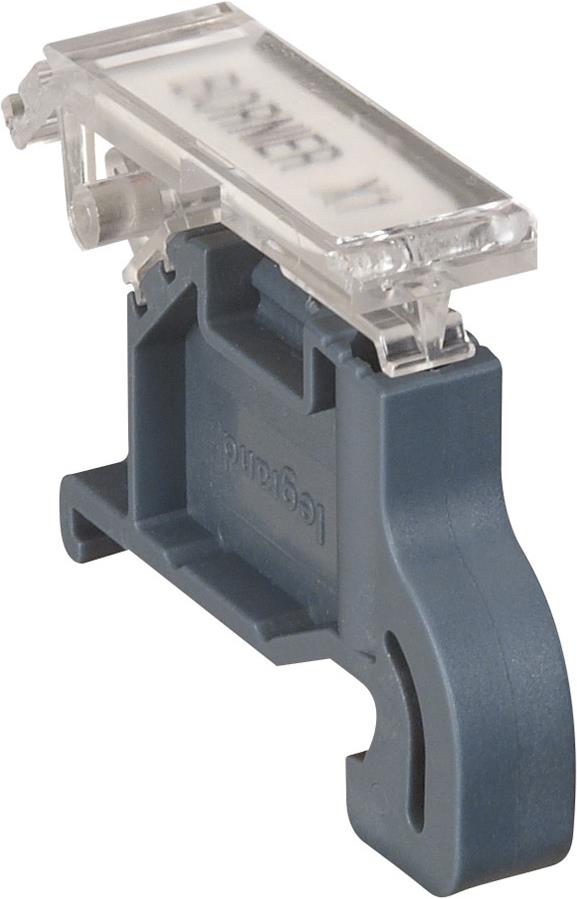

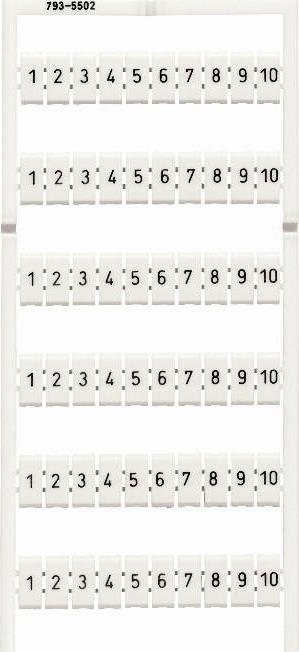

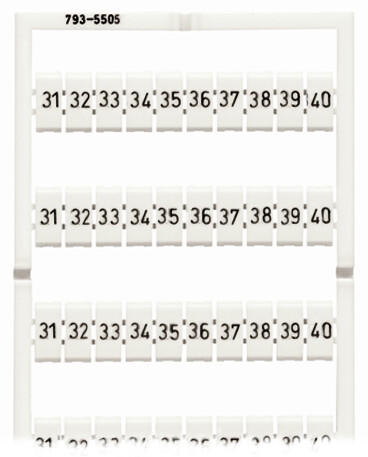

For covers, panels, markings and end pieces, establish whether they are included with the main item or offered separately. A photograph of an assembled solution does not replace the contents list. When extending, retain the codes of the existing enclosure and equipment so that accessories are not selected solely by general size or similar colour. Include the markings required in the list.

If the protective equipment itself is required, continue to circuit breakers and fuses. The general distribution boards and electrical equipment section helps connect assembly components with the other areas. The final list must distinguish supplied parts from complementary items and retain the exact series, references and requirements of the specific project.
