Name: Three-phase electricity meter 100A EM-9 – Digital, LCD, DIN mounting, S0 output
Brand: VIRONE
Price: 21.71 EUR
Availability: InStock

Трифазен електромер 100A EM-9 – Дигитален, LCD, DIN монтаж, S0 изход

Three-phase electricity meter 100A EM-9 – Digital, LCD, DIN mounting, S0 output

€21,71 €24,95

Description

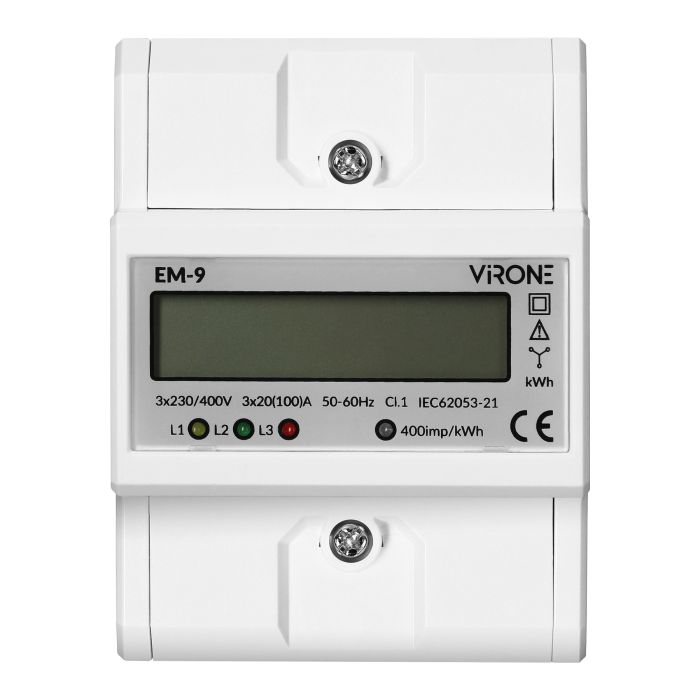

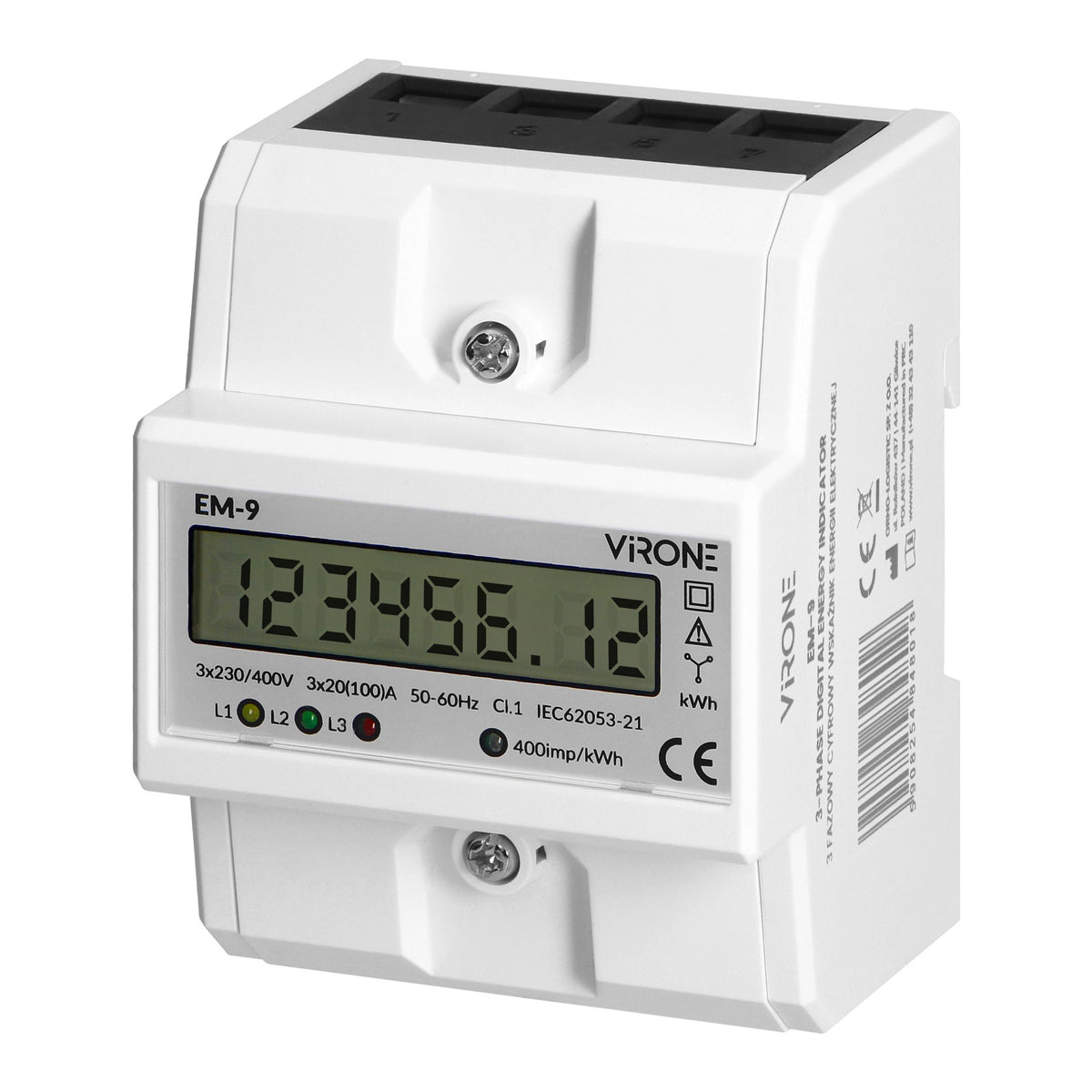

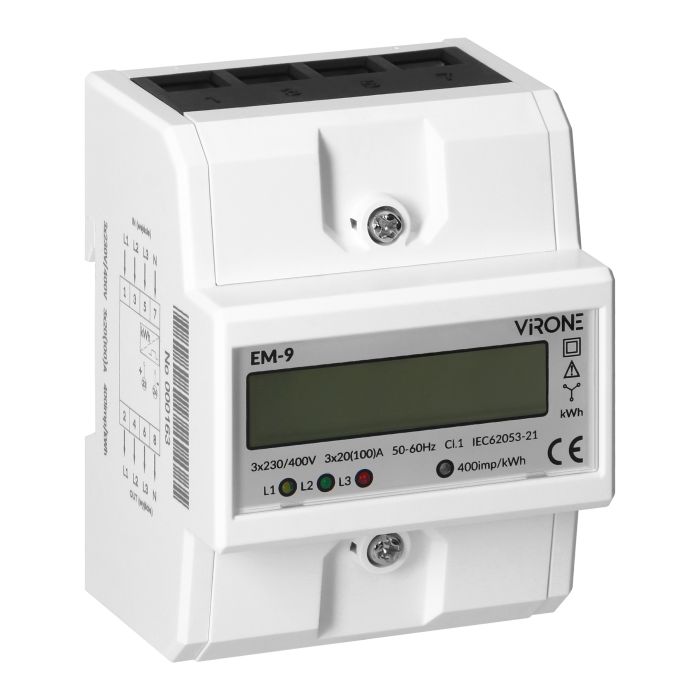

Three-phase digital electricity meter EM-9 – 100A, DIN mounting

The EM-9 three-phase digital electricity meter is a reliable, precise solution for measuring and monitoring active electrical energy in three-phase electrical installations. It is suitable for industrial, commercial and domestic applications requiring accurate monitoring of electricity consumption.

The device operates at a nominal voltage of 3x230/400 V AC and supports currents up to 100 A, making it suitable for a wide range of loads. Its own power consumption is low (up to 6 W / 30 VA), contributing to the installation's energy efficiency.

The meter is equipped with an LCD display (6+2 digits) for clear, easy reading of energy consumption in kWh. Each phase has an LED indicator – during consumption, the LED flashes at a frequency reflecting the load. The S0 pulse output (400 pulses/kWh) allows integration with automation systems, PLC controllers and external monitoring devices.

The housing is robust and compact, with an IP51 protection rating providing protection against dust and mechanical impacts. Installation is quick and convenient thanks to standard DIN mounting (35 mm), while the compact dimensions allow installation even in boards with limited space.

The meter complies with international standards IEC 62052-11 and IEC 62053-21, ensuring measurement reliability and accuracy.

Key advantages:

.Three-phase active energy measurement

.Maximum current up to 100 A (direct measurement)

.Highly legible LCD display

.S0 pulse output – 400 pulses/kWh

.LED indication for each phase

.DIN mounting, compact design

.High accuracy – class B

.Compliance with international standards
