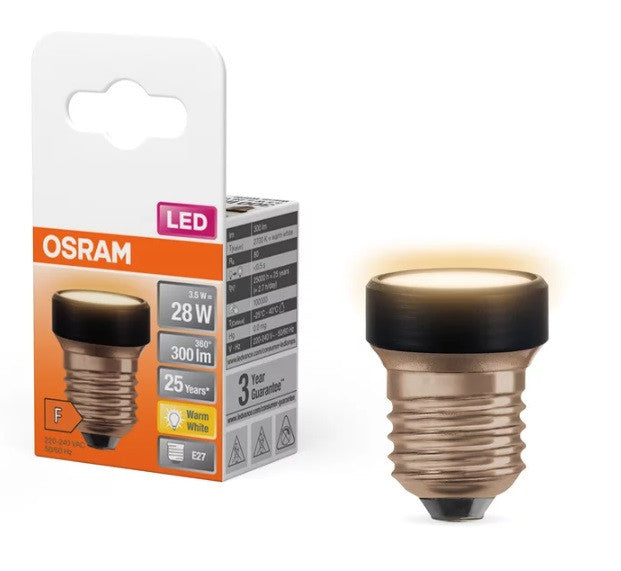

LED LAMP FLAT+2xRING 28 3.5W/827 230VFR E27 LEDVANCE

Electrical data

Rated power:           3,5 W

Construction power:          3,50 W

Rated voltage:     220…240 V

Operating mode:                  AC mains

Claimed equivalent conventional lamp wattage:          28 W

Rated current:                    32 mA

Current type:                                 AC

Inrush current:                           2.36 A

Operating frequency:                   50/60 Hz

Mains frequency:            50/60 Hz

Max. number of lamps on MCB B10 A:  320

Max. number of lamps on MCB B16 A:  514

Total harmonic distortion:               141,90 %

Power factor λ:                             0,46

Photometric data

Luminous intensity:                                Not relevant

Luminous flux:                                         300 lm

Luminous efficacy:                             85 lm/W

Basic lumen fact at the end of rated life:         0,96

Light colour (designation):                        Warm white

Colour temperature:                                   2700 K

Colour rendering index Ra:                   80

Light colour:                                                 827

Standard deviation of colour matching:          ≤6 sdcm

Flicker metric (Pst LM):                         1

Stroboscopic effect metric (SVM):           0,4

Lightweight technical data

Beam angle:                                               100 °

Warm-up time (60 %):                         ‹ 0,50 s

Start time   < 0,5 s

Dimensions and weight

Overall length:                                            45.00 mm

Diameter:                                                     35.00 mm

Maximum diameter:                               35 mm

Product weight:                                      25.00 g

Temperatures and operating conditions

Ambient temperature range:         -25…+40 °C

Maximum temperature at the tc test point:         90 °C

Service life

Service life L70/B50 at 25 °C: 25000 h

Number of switching cycles:                                100 000

Lumen maintenance at the end of service life:       0,96

Additional product data

Base (standard designation):                             E27

Mercury content:                                            0,0 mg

Mercury-free:                                                                Yes

Design/version:                                                      Frosted

Product note:    All technical specifications refer to the complete lamp. Due to the complex LED manufacturing process, the typical LED technical values shown are purely statistical values and do not necessarily correspond to the actual technical specifications of each individual product, which may vary from the typical value

Capabilities

Dimmable:                                                                No

Certificates and standards

Energy efficiency class    F 1)

Energy consumption:      4.00 kWh/1000h

Protection type:                         IP20

Standards:                            CE, UKCA, EAC

Photobiological safety group according to EN62778:      RG1

1) Energy efficiency class (EEC) on a scale from A (most efficient) to G (least efficient)

Country classifications

Order reference  LEDCLFLAT28 3,5

LOGISTICS DATA

Storage temperature range  -20…+80 °C

Energy labelling regulation data according to EU 2019/2015

Lighting technology used:        LED

Unspecified or directional:      NDLS

Mains or non-mains:  MLS

Light source cap type (or other electrical interface):           E27

Connected light source (CLS):                                                                  No

Colour-adjustable light source:                                                          No

Envelope:                                                                                                                        No

High-luminance light source:                                                                No

Anti-glare shield:                                                                                         No

Correlated colour temperature type:                                                       SINGLE_VALUE

Standby power:                                                                           0 W

Equivalent wattage claim:                                                                  Yes

Length:       45.00 mm

Height:      35.00 mm

Width:        35.00 mm

Chromaticity coordinate x:          0,458

Chromaticity coordinate y:          0,410

R9 colour rendering index:       10

Beam angle correspondence:      СФЕРА_360

Survival factor:          0,9

Displacement factor:         0,787

LED light source replaces a fluorescent light source:  No

EPREL ID:     1891351

Model number:      AC59898

Product benefits

Ultra-compact designer lamp without a bulb-shaped diffuser

The bulb's shape highlights the beauty of the luminaire in which it is used

The special design offers comfortable light distribution

Lower energy consumption than incandescent or halogen lamps

Areas of application

Perfect for decorative installations

General lighting

Outdoor use only in outdoor luminaires (minimum IP65)

Product features

Two versions are available: Non-Dim and 3 Step-Dim

Flat diffuser with E27 base

Two rings (black and white) are included for customisation, allowing different luminaire colours

Service life: up to 25 000 hours

The 3-step dimming version offers easy dimming via a wall switch
