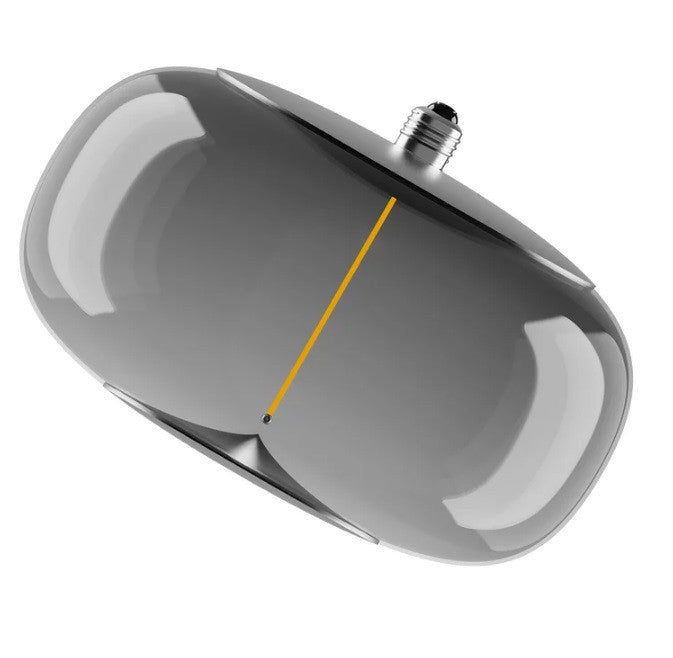

LED LAMP VINTAGE 1906 MAGNET ELIPSE D300P SMOKE 6 4W/81 LEDVANCE

SKU: 20240161
Barcode: 4099854173929
€43,44 €52,98
-18%

Delivery and payment

Warranty

LED LAMP VINTAGE 1906 MAGNET ELIPSE D300P SMOKE 6 4W/81 LEDVANCE
€43,44 €52,98
€43,44 €52,98

Description

Electrical data

Rated power

4 W

Construction power

4,00 W

Rated voltage

220…240 V

Operating mode

AC mains

Claimed equivalent conventional lamp wattage

6 W

Rated current

35 mA

Current type

AC

Inrush current

0,3 A

Operating frequency

50/60 Hz

Mains frequency

50/60 Hz

Max. lamp No. at circuit interruption. 10 A (B)

228

Max. lamp No. at circuit interruption. 16 A (B)

365

Photometric data

Luminous intensity

Not relevant

Luminous flux

60 lm

Luminous efficacy

15 lm/W

Lumen basic fact at the end of rated life

0,93

Light colour (designation)

Comfortable warm white

Colour temperature

1800 K

Colour rendering index Ra

80

Light colour

818

Standard deviation of colour matching

≤6 sdcm

Rated LLMF at 6000 hours

0,80

Flicker metric (Pst LM)

1

Stroboscopic effect metric (SVM)

0,4

Light technical data

Beam angle

320 °

Warm-up time (60 %)

‹ 0,50 s

Start time

0,5 s

Dimensions and weight

Overall length

210.00 mm

Diameter

300.00 mm

Maximum diameter

300 mm

Product weight

710.00 g

Temperatures and operating conditions

Ambient temperature range

-20…+40 °C

Maximum temperature at the tc test point

45 °C

Service life

Service life L70/B50 at 25 °C

15000 h

Number of switching cycles

100 000

Lumen maintenance at the end of service life

0,93

Rated lamp survival factor at 6000 hours

≥ 0,90

Additional product data

Base (standard designation)

E27

Mercury content

0,0 mg

Mercury-free

yes

Design / version

clear

Product note

All technical parameters refer to the entire lamp. Due to the complex light-emitting diode manufacturing process, the typical values shown for LED technical parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which may vary from the typical value.

Capabilities

Dimmable

No

Certificates and standards

Energy consumption

4.00 kWh/1000h

Protection type

IP20

Standards

CE

Photobiological safety group according to EN62778

RG1

Country categorisations

Ordering reference

1906LBELP 4W/81

LOGISTICS DATA

Storage temperature range

-20…+80 °C

Energy labelling regulation data under EU 2019/2015

Lighting technology used

LED

Unspecified or directional

NDLS

Mains or non-mains

MLS

Light source cap type (or other electrical interface)

E27

Connected light source (CLS)

No

Colour-adjustable light source

No

Envelope

No

High-brightness light source

No

Anti-glare shield

No

Network standby power for CLS

Equivalent wattage claim

yes

Length

210.00 mm

Height

300.00 mm

width

300.00 mm

Chromaticity coordinate x

0,552

Chromaticity coordinate y

0,408

Beam angle correspondence

СФЕРА_360

Survival factor

0,9

LED light source replaces a fluorescent light source

No

EPREL ID

1617900

Model number

AC53373

Product description



Product benefits

  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100% light, no warm-up time
  • Can easily be installed in place of ordinary bulbs
  • Protection type: IP20, ideal for indoor use
  • Decorative lamps with innovative LED "filament-magnetic" technology
  • Without filament holder: Ideal for decorative installations
  • Available in various bulb shapes and diameters

Areas of application

  • Perfect for decorative installations
  • Domestic applications
  • General lighting

Product characteristics

  • Service life: up to 15 000 hours
  • Good light quality; colour rendering index R a : ≥ 80; constant chromaticity
  • Lamp made of plastic
  • Available with colour temperature: 2700 K, 1800 K
  • Pleasant light: Comfortable warm white light colour
  • Can be used directly as a luminaire

GTIN and packaging information



Product code

Packaging unit (pieces/unit)

Dimensions (length x width x height)

Gross weight

Sound volume

4099854173929

Folding box
1

308 mm x 308 mm x 219 mm

1296.00 g

20,78 dm³
